Basic parameters of submersible solar water pump

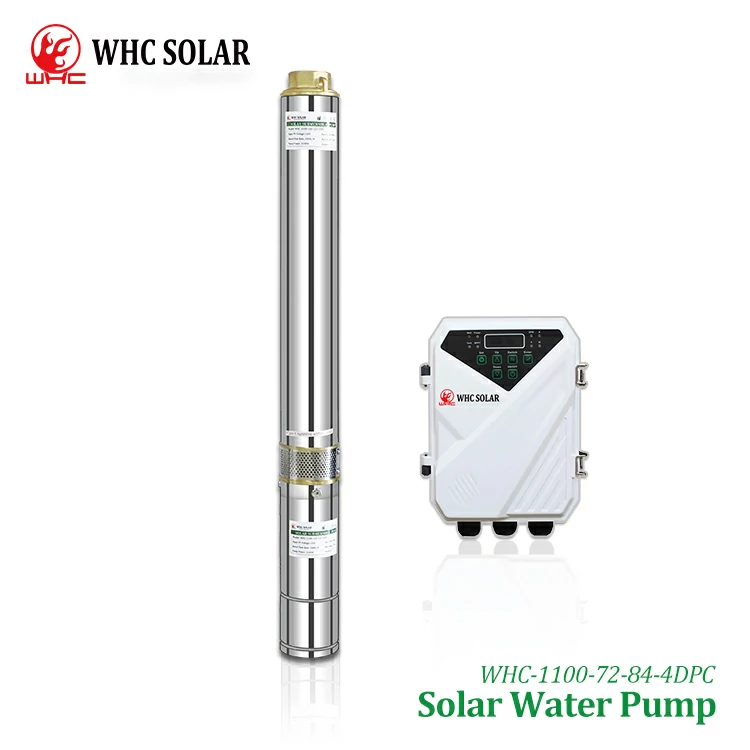

Model: WHC 1100-72-84-4DPC Solar Submersible Pump
Maximum water head: 84m
Speed head: 50m
Maximum flow: 6000L/H
Rated flow: 3000L/H
Solar panel: monocrystalline silicon 330W*6PCS
Motor power: 1100W
Mppt controller: 72V 15A
Solar input voltage: 99V
Working time:During the sunshine
Diameter (Φ): 4"
Motor speed: 4000r/min
Submersible solar water pump material: 304 stainless steel
WHC 1100-72-84-4DPC Solar Submersible Pump
solar submersible pump has strong working efficiency, the motor power of the pump reaches 1100 watts, the maximum lift is 84m, and the maximum flow is 6000L/hour. The output water source is more efficient, cleaner and more environmentally friendly.
Complete solar water pump system accessories
Each solar water pump system has high-efficiency accessories. The better the fittings, the higher the working efficiency, ensuring that the pump has good pumping capacity in deep water areas, and quickly providing users with high-quality water. WHC 1100-72-84-4DPC accessories are as follows:
6PCS*330W Monocrystalline Solar Panel
It has high-efficiency solar photon tracking capability, which can quickly power the solar water pump for pumping water. And the service life of solar panels is as long as 25 years, and the warranty is 10 years.
1*PCS solar MPPT controller
The MPPT controller can provide protections such as current, voltage overload, short circuit, etc., and assist the solar panel to work. It is one of the important parts of the entire solar submersible pump.
Solar deep well pump adopts DC brushless function
The DC brushless function has good energy-saving performance. Compared with ordinary DC brush pumps, it can save energy by 35%. The overvoltage protection function can be easily set. When working in deep wells, it has low noise, high efficiency, low power consumption and long life.
Advantages of WHC 1100-72-84-4DPC Solar Well Pump Kit
Solar deep-well pumps mainly rely on solar panels as the power source to operate, without the need for grid installation, saving corresponding materials and complex installation costs. When the power grid is out of power or the power supply is insufficient. Solar deep well pumps can work off-grid and directly use solar energy to work. In terms of long-term investment and use, solar deep well pumps are cheaper and more affordable than traditional pumps.
It has excellent anti-corrosion and anti-rust properties. The whole water pump is made of 304 stainless steel, which can run underwater for a long time. It has strong heat resistance and can work normally in a high temperature environment without affecting work efficiency. When the water level drops, it can stop working automatically, so you don't need to pay attention to the rise and fall of the water level all the time. This further reflects the advantages of solar water pumps.
Application of off-grid DC solar water pump
This kind of solar water pump is widely used. It is a set of solar submersible pumps with a wide range of applications. Very suitable for solar pumping system kits for farms, pastures, villages, homes, etc.
