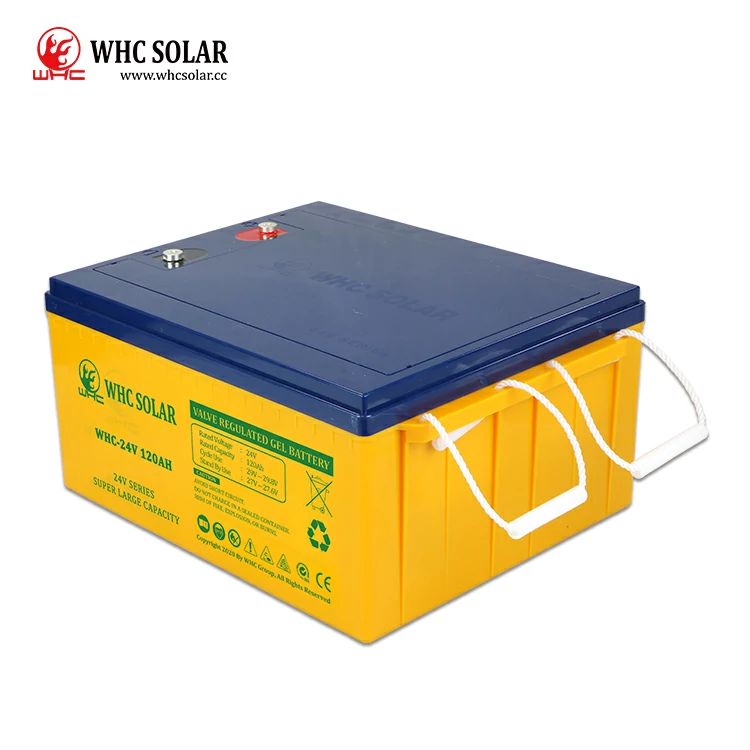

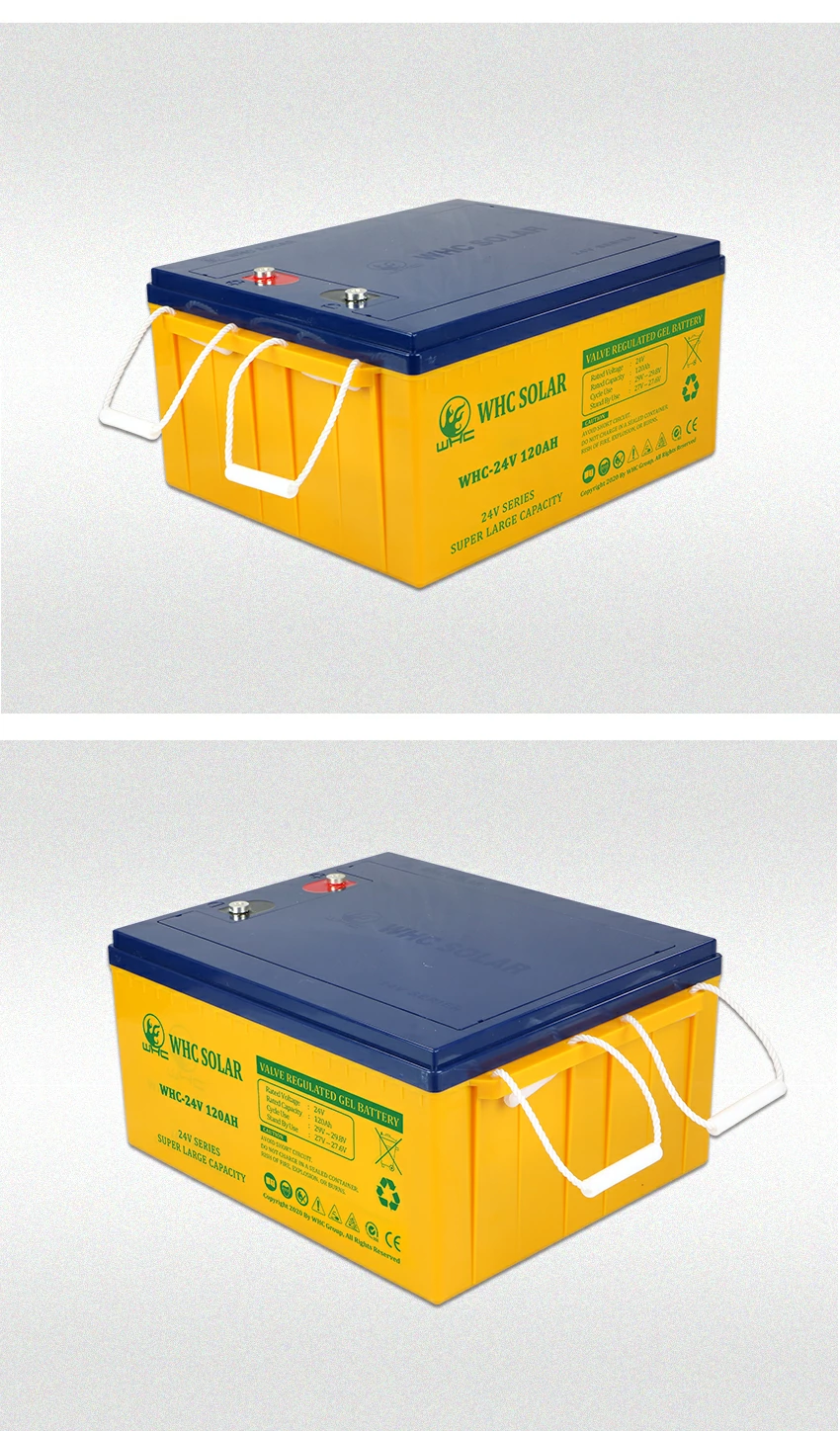

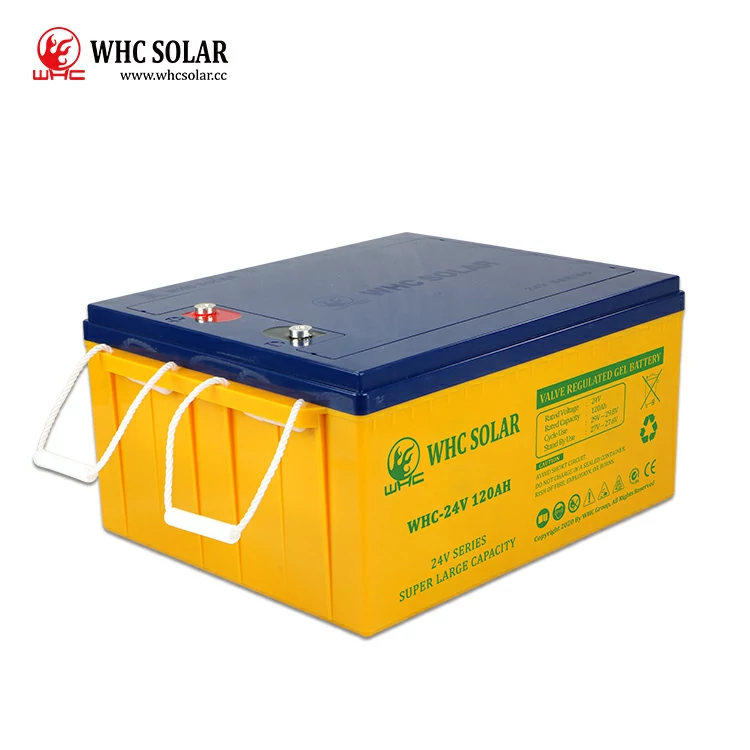

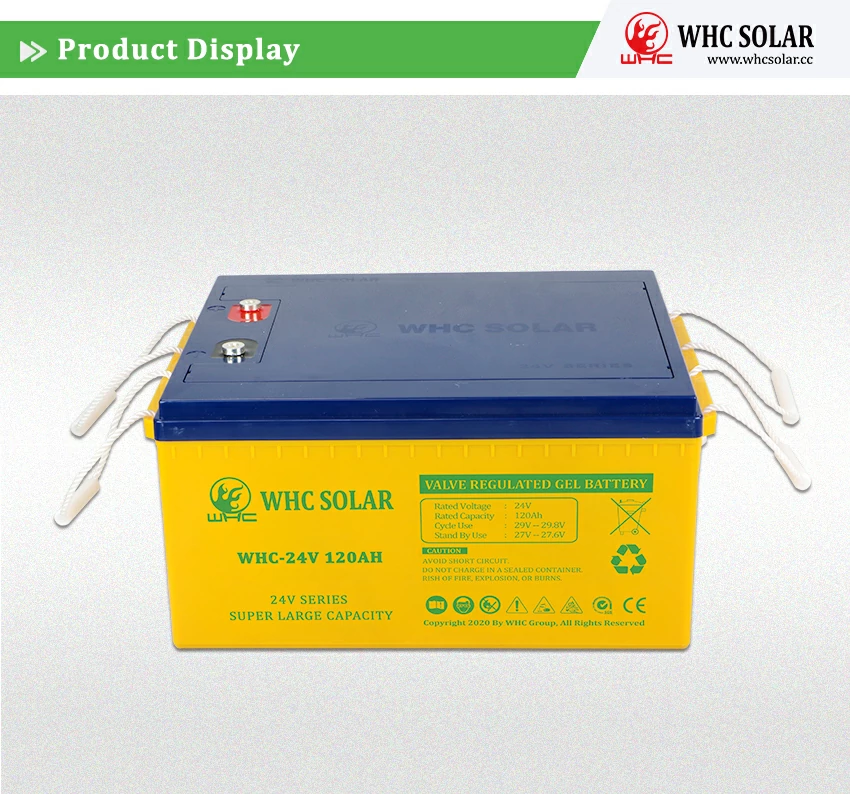

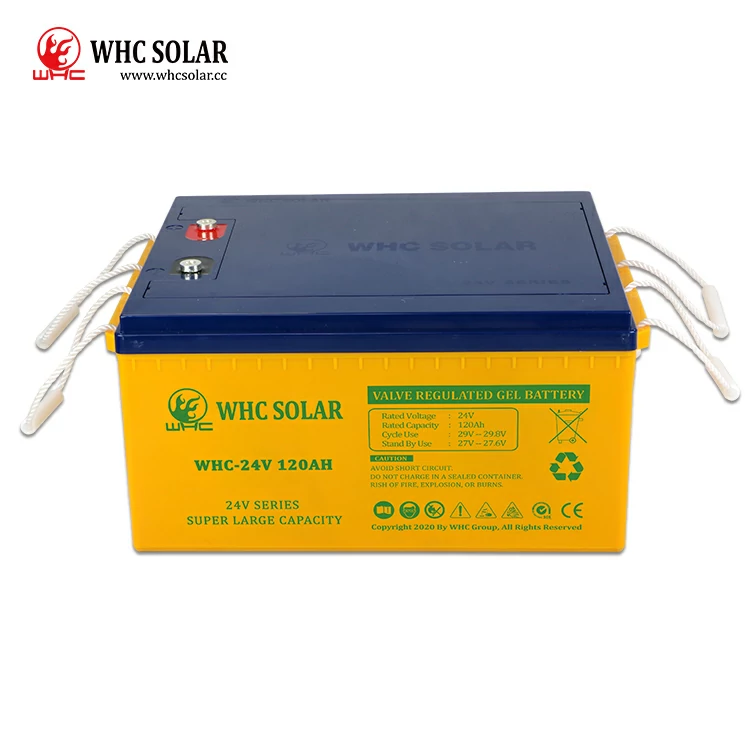

WHC 120-24 Best Solar Battery Deep Cycle Gel 24V 120AH Home Storage

WHC 120-24 24v 120ah Long Lifespan Rechargeable Solar gel lead acid Storage Battery ,For Home Power System, Solar Panel System, wind Power System, ups System etc.

Product name:Solar Gel Battery

Model:WHC 24V1 120AH

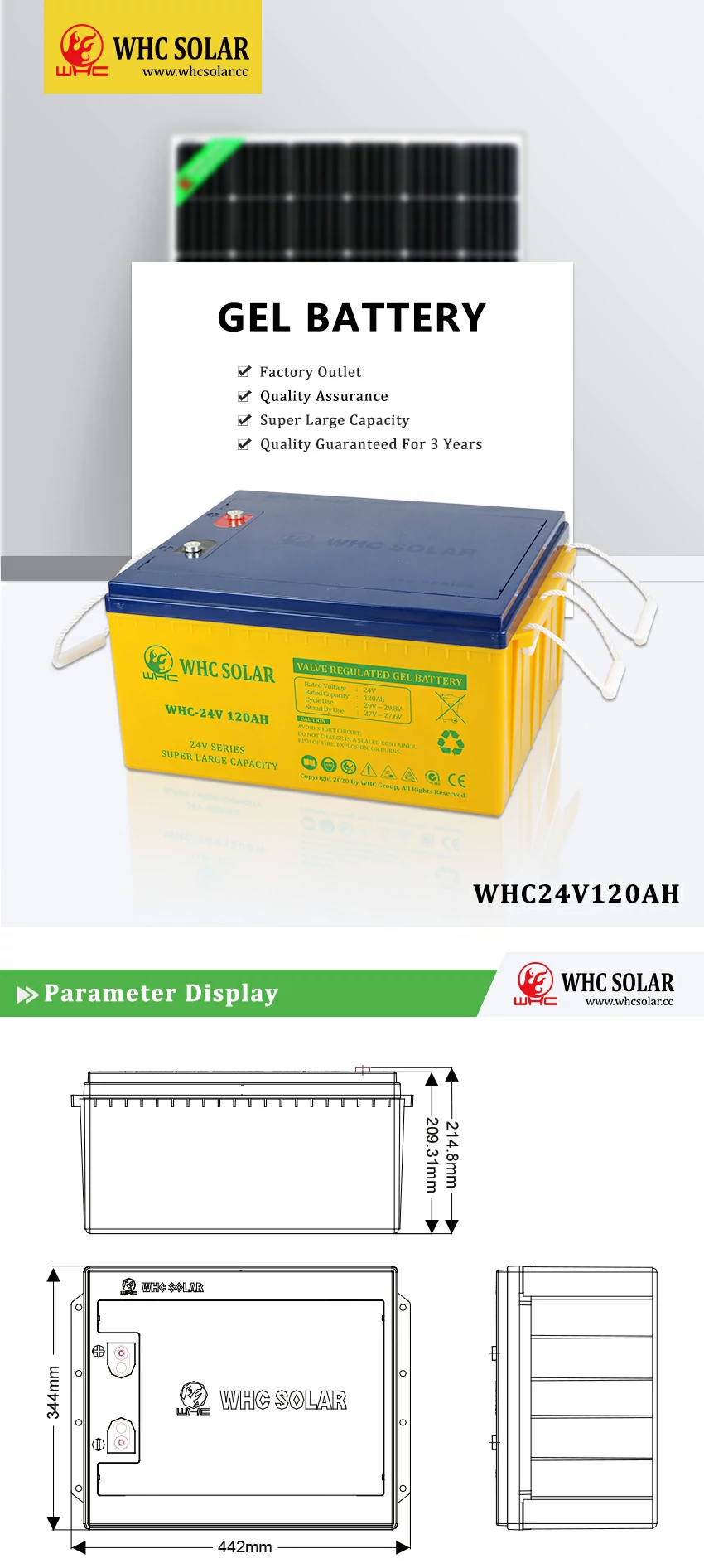

Appearance Size: 442*344*209.3mm

Weight: 64kg

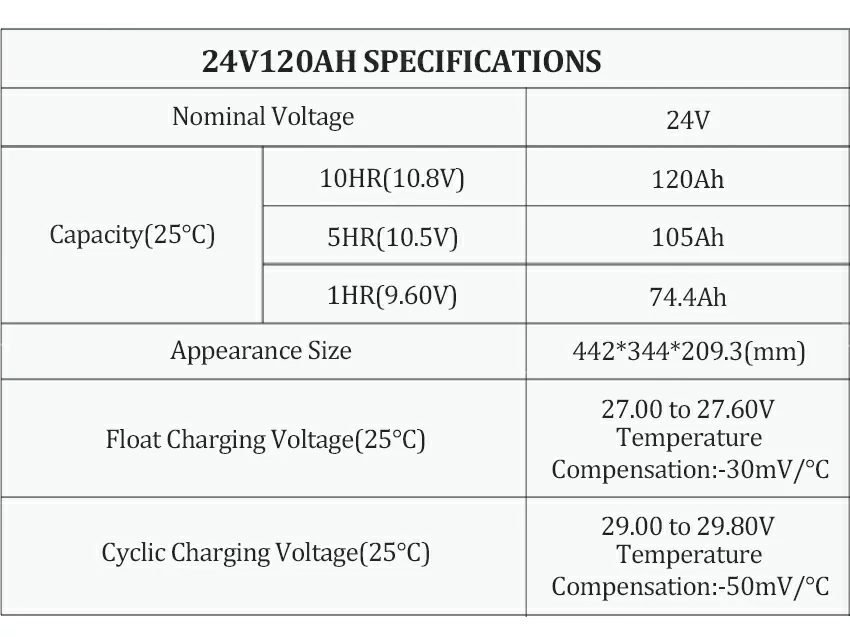

Specifications:

Nominal Voltage    24 V

Capacity(25℃)
10HR(10.8V)          120 A
5HR(10.5V)            105Ah
1HR(9.60V)            74.4Ah

Dimension:

Length: 442±2mm

Width: 344±2mm

Height: 209.3±2mm

Total Height: 215±2mm

Ter minal type:T19/T11

Internal resistance (Fully charged, 25°C ) :

Approx. 4mΩ

Capacity affected by temperature(10HR):

40 °C: 102%
25 °C: 100%
0°C: 85%
-15 °C: 65%

Self -discharge(25 °C):

3 month:Remaining Capacity: 91%

6 month:Remaining C apacity: 82%

12 month:Remaining Capacity: 65%

Nominal operating temperature:

25°C+3°C (77°F土5°F)

Operating temperature range:

Discharge:-15°C ~ 50°C(5°F~ 122°F)

Charge:

-10°C~ 50°C(14°F ~122°F)

Storage:

-20°C ~ 50°C (-4°F~122"F)

Float charging voltage(25°C):

27.00 to 27.60V Temperature compensation:-30mV/°C

Cyclic charging voltage(25°C):

29.00 to 29.80V Temperature compensation:-50mV/°C

Maximum charging current:36A

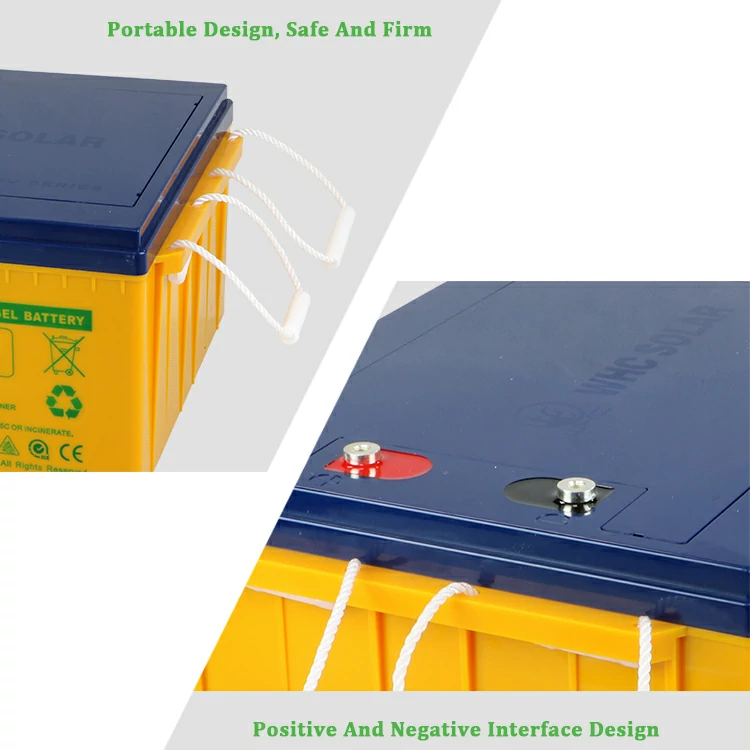

Terminal material:T19: Lead,T11: Copper

Maximum discharge current:960A(5 sec.)

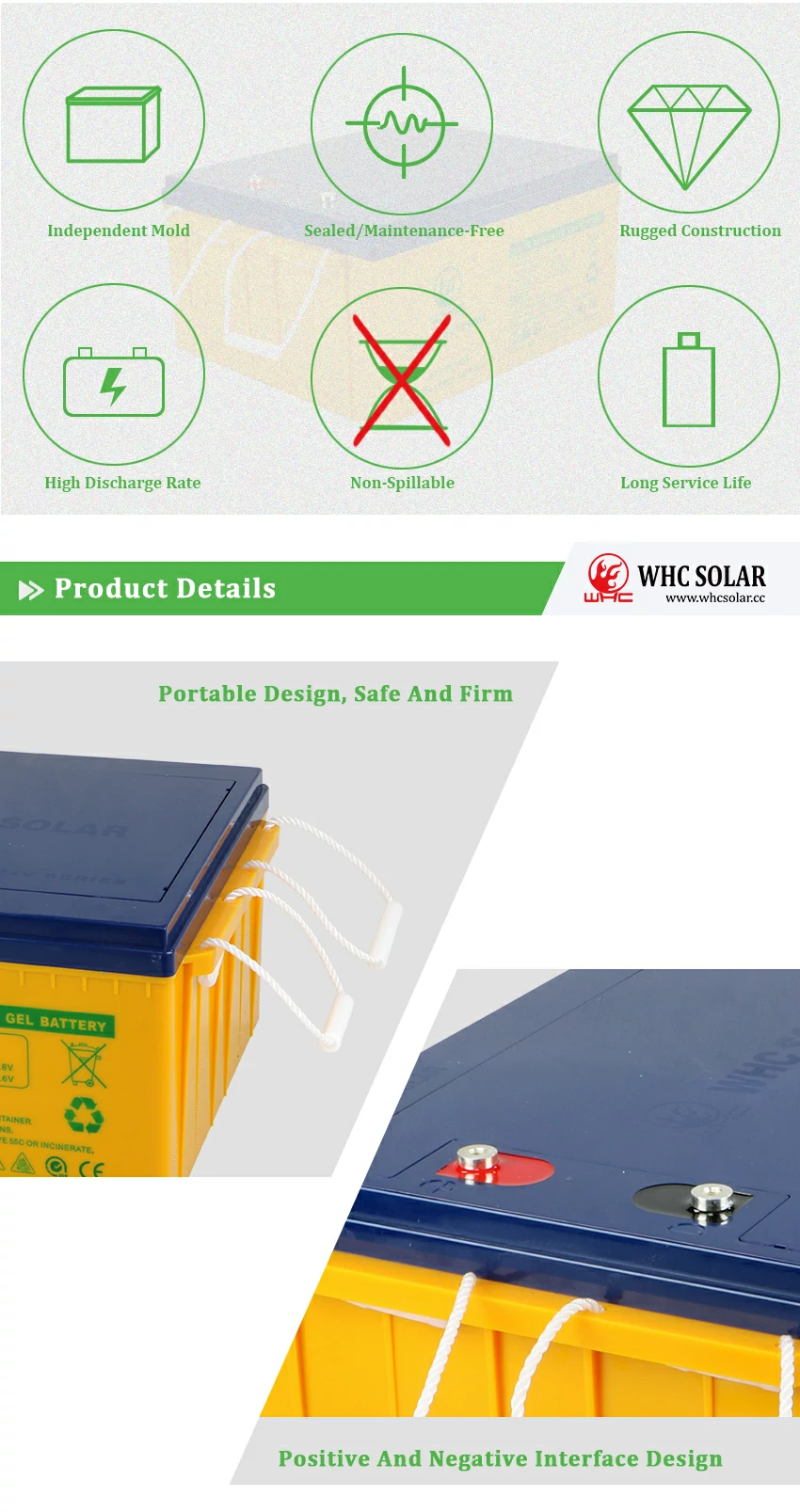

Features:

  •  Long life: 3 years warranty and Heavy duty lead-calcium grids enable a long designed service life of 6 years&rsquo.
  •  patented design: WHC battery adopts PE composite diaphragm structure, Ensure that the gel electrolyte passes evenly through the battery interior and the optimal uniformity of all components of the battery.
  •  High safety: valve-controlled seal structure and three-layer reinforced seal to prevent electrolyte leakage,And ensure the air tightness and liquid state during normal battery operation.

A Simple Guide to Choosing The Gel Best Solar Battery .

If you are looking for the best solar battery. You want to know which gel solar battery have the best performance, which have the longest service life, and how to get the best solar Battery. You can use the comparison principle to configure the best battery for your off-grid system energy.

Why Is Gel Solar Deep Cycle Battery So Famous?

When you look at solar battery packs of different volts, look at the depth of discharge and how to use it to utilize the battery. Of course, there is also the gel solar deep cycle battery of . Deep cycle batteries can also be used in other renewable energy applications. They can handle long, frequent and deep charge/discharge cycles. Let the solar system be better protected.

Learn About gel Solar Battery Pack Shortcuts - The Easy Way

Let's look at the capacity of the gel solar battery pack first, and want to mention the voltage information. So when you can find the typical voltage is 12 volts or 24 volts. The main reason for the different voltages is that they consist of separate batteries. For example, the electrolyte of one battery produces a voltage of 2 volts, and three batteries are connected in series to produce a voltage of 6 volts. It becomes a 12-volt battery. Then if the voltage is 2 volts, three batteries are connected in series to produce 8 volts. It becomes a 24 volt battery. The resulting Abe will also be different, so this is the basic difference between solar battery.

How To Use Gel Solar Battery Storage To Desire.

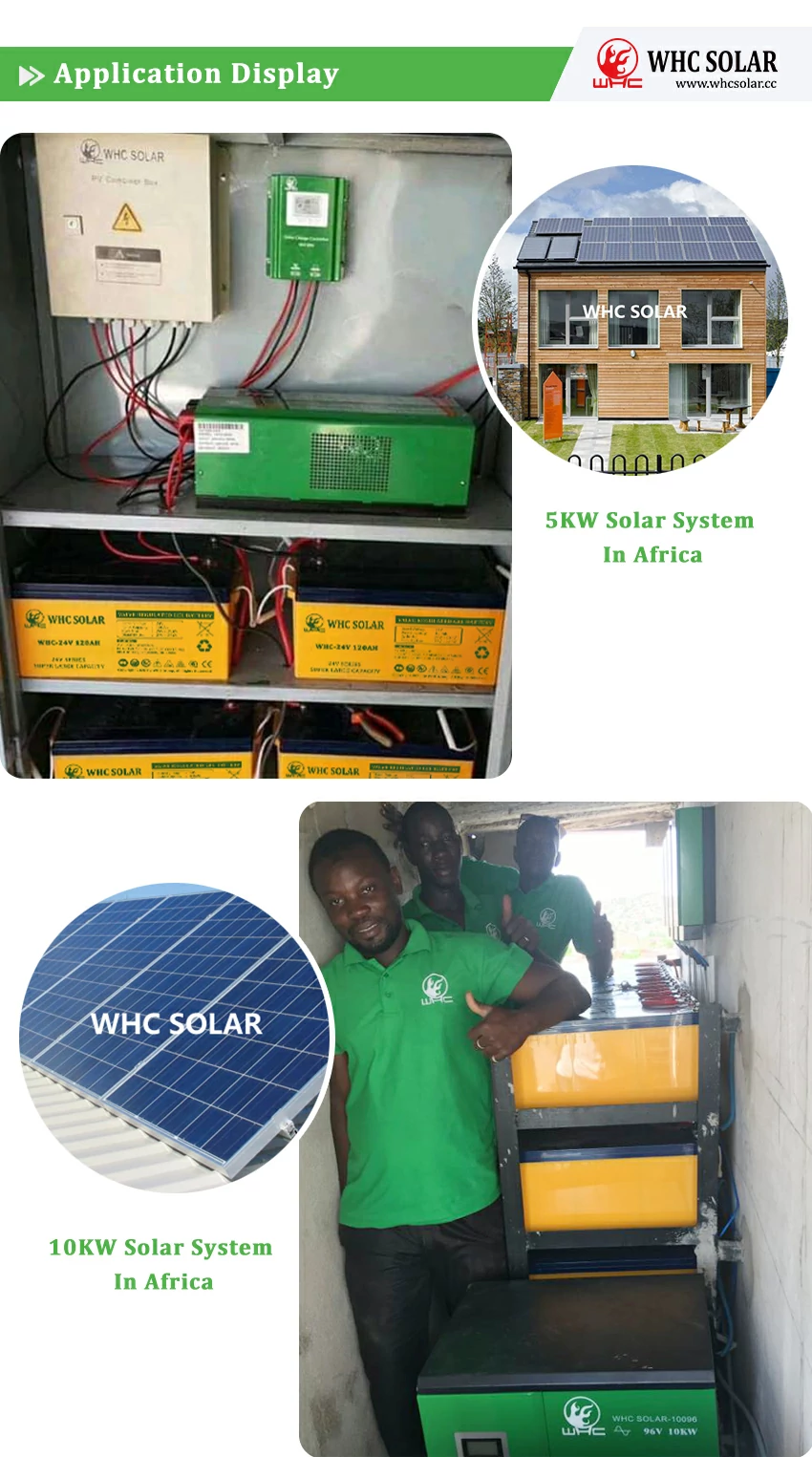

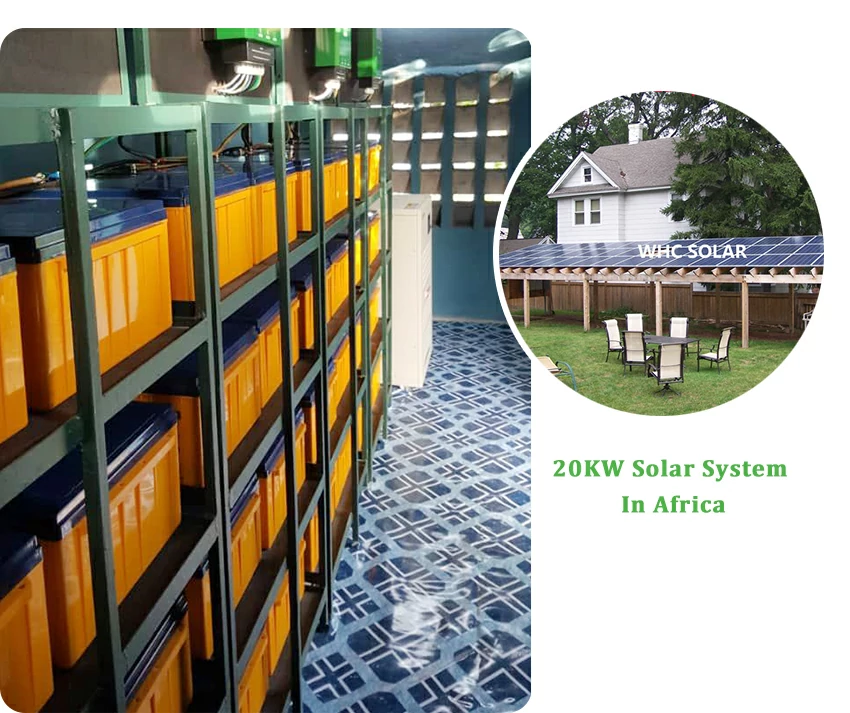

In short, household solar cell energy storage or solar cells can be charged and stored by solar panels during the day, and the stored energy can be added to the system for later use. The energy stored in the night system can be used in home appliance systems and power systems, solar storage systems and uninterrupted power supplies, which are essential for many households.

Gel Solar Battery Are The Only Product You Really Need

WHC 200-24 Gel Solar Battery Are The Only Product You Really Need
WHC 200-24 24V, 120ah solar gel battery, adopts maintenance-free oxygen composite technology to achieve maintenance-free performance, high-purity raw materials, and high discharge efficiency. And the heat dissipation is strong, the working temperature range is wide, so that the product has a longer service life. Let WHC Solar energy gives you a safe and happy home.
